Oven Style(s) | Double Side Opening |
Oven Fuel(s) | Both Electric |
Oven Size(s) - Litres | Both 73 |
Oven Type(s) | Multi Function Incl. Rapid (LH) & Fan Forced (RH) |
Grill | Separate Electric Glide-Out |
Hob Configuration | 5 Gas Burners Incl. Multi Ring Wok Burner & 2 x Ceramic Burners |
Flame Failure | Pan Detector | Yes | N/A |
Catalytic Oven Liners | Yes |
Programmable | Left Hand Oven |
Separate Drawer | Bread Proving or Storage |
Colour Range | Black, Cream, Royal Blue, Slate, White, Mineral Green, Stone Blue |
Fittings | Chrome or Brass |
HxWxD (mm) | 905^ x 1100 x 608* |
P&L Warranty (Years) | 5 |
Features | CLASSIC DELUXE 110 DUAL FUEL |
Model number | CDL110DF + colour |
Width (mm) | 1100 |
Depth (mm) *excluding / including handles | 608 / 666 |
Height up to hot plate (mm) ^adjustable height |
905 - 930^ |
Hob gas ratings (Mj) ^^IncludesMulti ring wok burner |
1 x 3.8 - 15.2^^ 1 x 3.0 - 12.3 2 x 1.55 - 6.2 1 x 0.82 - 3.7 |
Ceramic Burners (Multi-zone) | 2 x 1.1kw |
Total Mj rating | 43.6 |
Rated connected load (kW) | 10.83 |
Rated connected load (amps) | 46 |
Electrical connection# (amps) #Using assessed maximum demand. Not all zones can be used at once. Consult with a licensed electrician. See below for further details. |
40# |
Oven capacity **litres - Left hand / Right hand |
73 / 73 |
Oven fuel - Left hand / Right hand | Electric / Electric |
Oven type - Left hand / Right hand | Multi Function (incl. Rapid) / Fan Forced |
Rear vented ovens | Yes |
Dual circuit separate grill | Glide-Out |
Griddle plate | Multi-Zone |
Wok cradle | Yes |
Browning element | Yes |
Cast iron pan supports | Yes |
Flame failure safety device | Yes |
Electronic ignition | Underknob |
Programmable oven | Left Hand Oven |
Minute minder | Yes |
Handyrack | Yes |
Glass door glazing | Double |
Side opening doors - Left hand / Right hand |
Porthole / Porthole |
Oven light | x 2 |
Catalytic oven liners | Yes |
Child lock (oven controls) | Left Oven Only |
Slow cook | Yes |
Defrost | Yes |
Bread Proving and Storage drawer | Yes - Half width |

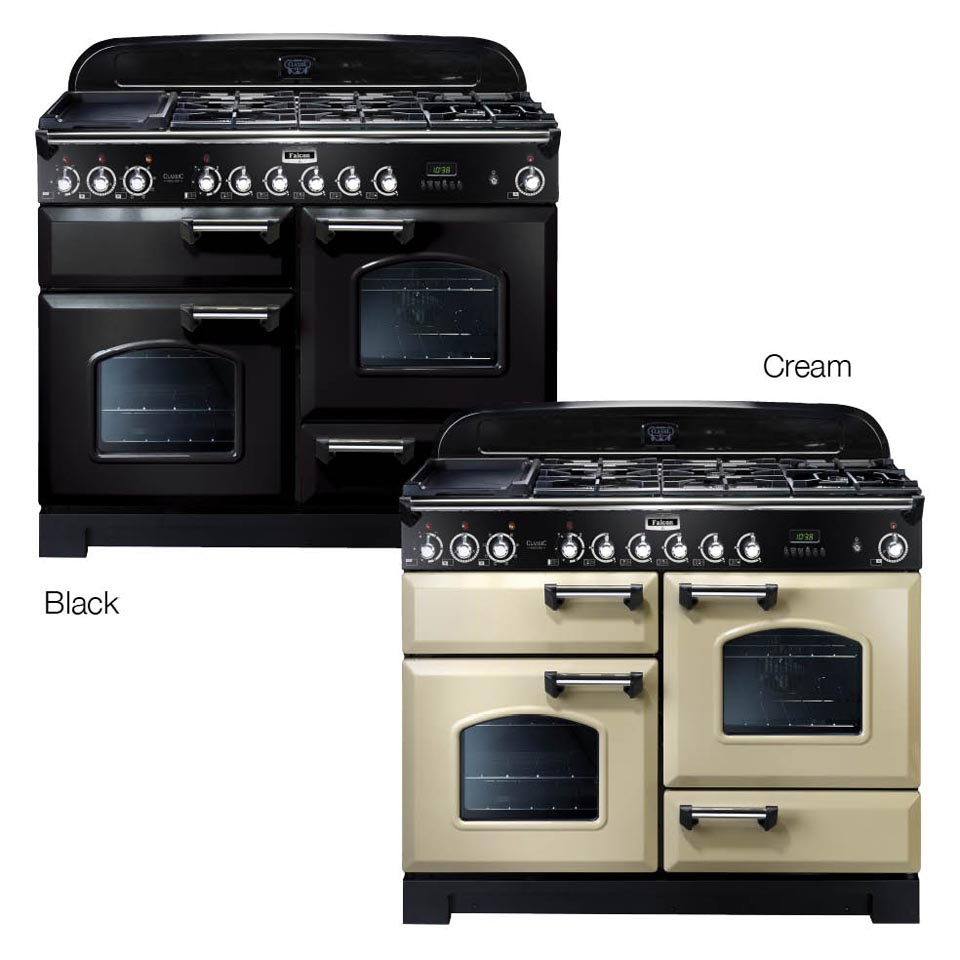

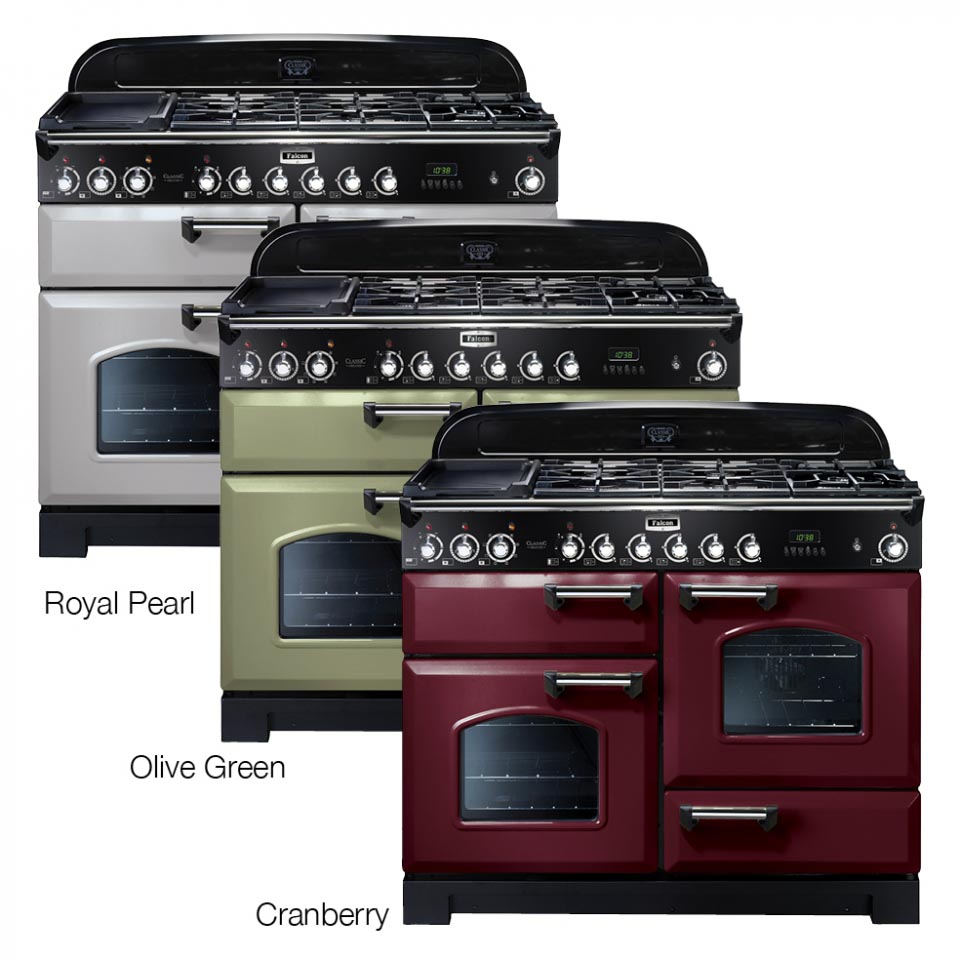

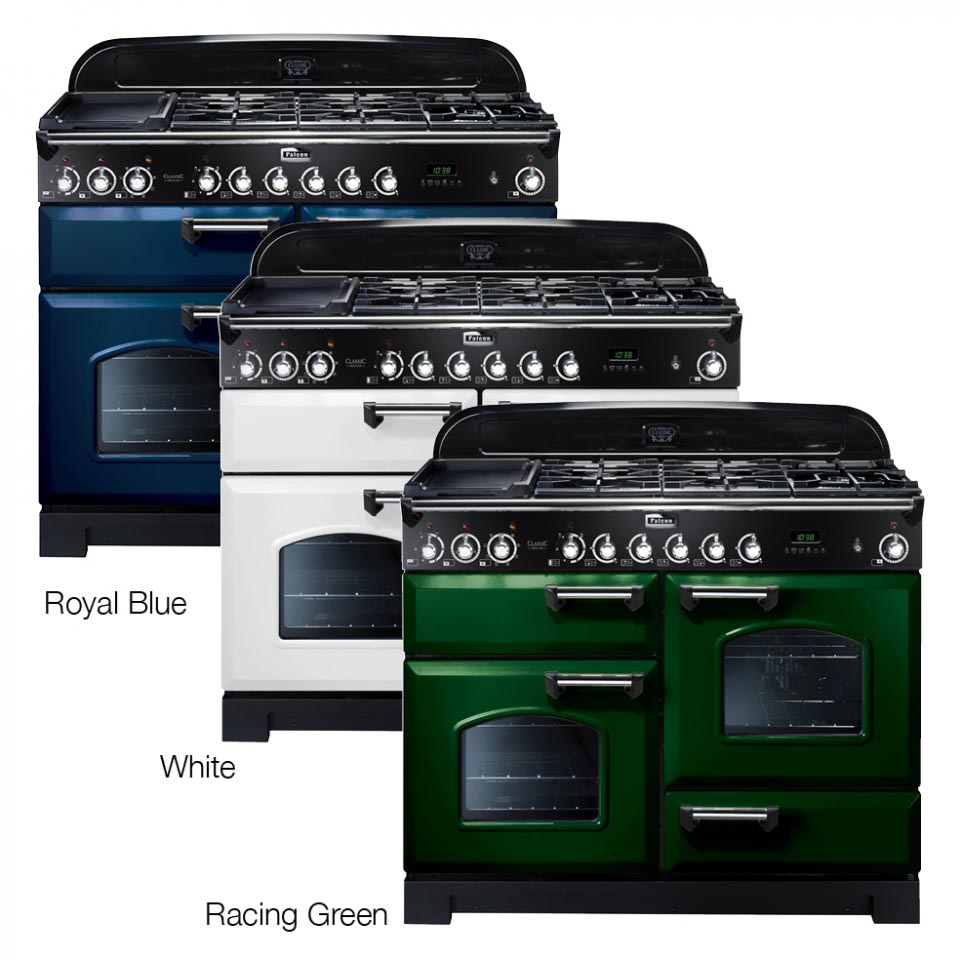

Colour range available | Black (BL), Cream (CR), Cranberry (CY),Olive Green (OG), Racing Green (RG), White (WH), Royal Blue (RB) or Royal Pearl (RP) |
LPG convertible | Yes |

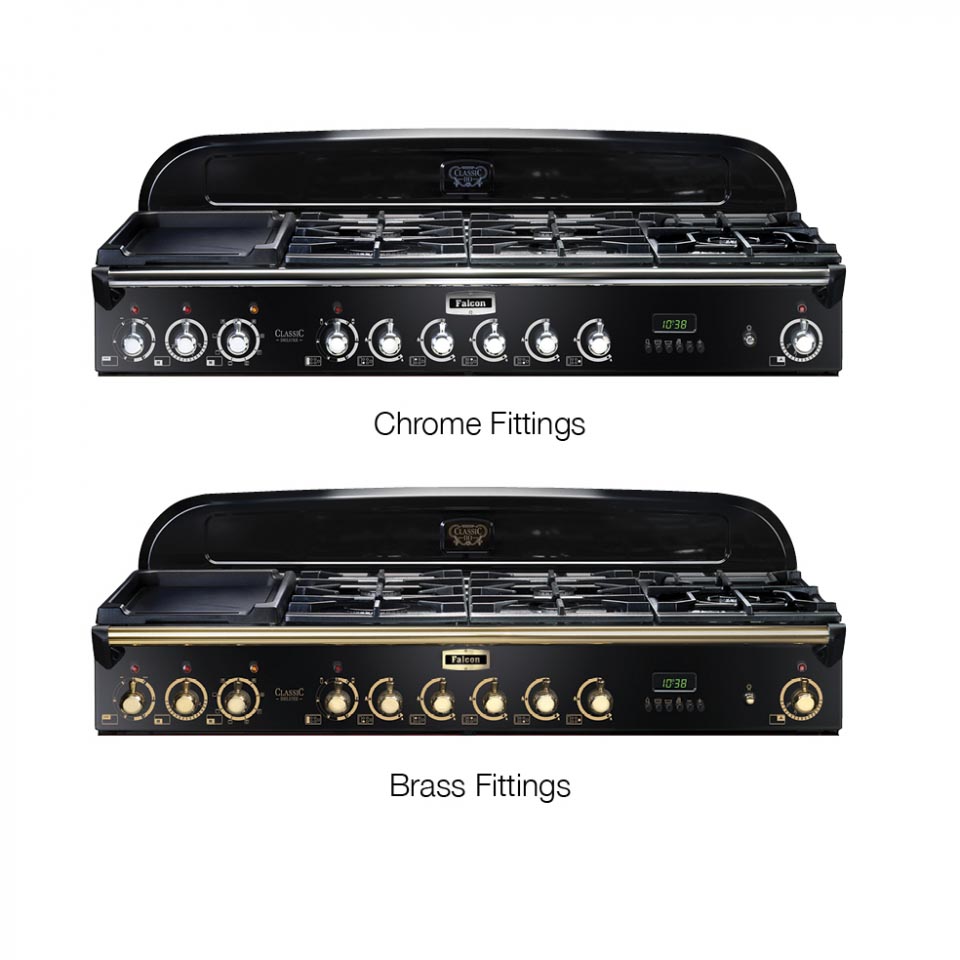

Fittings available | Chrome OR Brass |
Made in | Great Britain |
Warranty - Parts & Labour (Years) | 5 |
Product weight | 133kg |
**Please note: Litres are based on European standards
Important to note:
This model notes both a Rated Connected Load (AMPS) and Electrical Connection# (AMPS).
Rated Connected Load refers to the total electrical demand required to operate a Falcon cooker at its maximum capacity (all ovens and zones).
Electrical Connection# refers to an assessed maximum
demand as permitted in the Wiring Rules. This provides an alternative to
3 phase connections and electrical installations where the total demand
of the appliance cannot be supplied. In this instance not all ovens and
zones can be used at once.
Consult with a licensed electrician for further information or contact
us for further technical information.
